Grampian SailboatsGrampian 30
Designed by Alex McGruer — about 350 built in Canada and the USA.

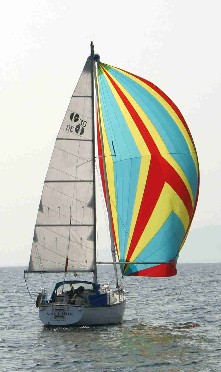

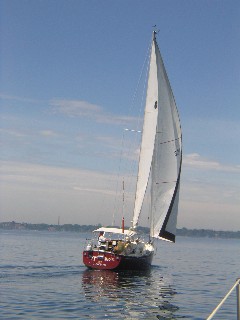

Photos
Specifications
| L.O.A. | 29' 9" | Hull | Fibreglass |
|---|---|---|---|
| L.W.L. | 25' 6" | Power | Atomic 4 or Yanmar |
| Beam | 9' 6" | Ballast | 3870 lbs |
| Draft — Full Keel | 4' 8" | Displacement | 8600 lbs |
| Draft — C/B | 3' 3" | Headroom | 6' 4" |
| Sail Area — Main | 190 sq. ft. | Berths | 5 (6 optional) |
| Sail Area — Working Jib | 143 sq. ft. | Sail Area — Genoa #1 | 340 sq. ft. |
| Sail Area — Genoa #2 | 300 sq. ft. | Designer | Alex McGruer |
Specifications on sailboatdata.com
Figures are transcribed from the sailboatdata.com record linked below and may differ from the owners’ figures elsewhere on this page. Metric values are theirs.
| Hull type | Fin keel, spade rudder | Rig | Masthead sloop |
|---|---|---|---|
| L.O.A. | 29.75 ft / 9.07 m | L.W.L. | 25.50 ft / 7.77 m |
| Beam | 9.50 ft / 2.90 m | Draft | 4.67 ft / 1.42 m |
| Displacement | 8,600 lb / 3,901 kg | Ballast | 3,870 lb / 1,755 kg |
| Sail area (reported) | 425 ft² / 39.48 m² | Construction | Fibreglass |
| First built | 1969 | Last built | 1977 |
| Number built | 400 | Builder | Grampian Marine Ltd. (Canada) |
| Designer | Alex McGruer | Engine (original) | Universal Atomic 4 (gas) |
| Fuel | 10 gal / 38 L | Water | 15 gal / 57 L |
Rig and sail particulars
| I | 36.90 ft / 11.25 m | J | 11.00 ft / 3.35 m |
|---|---|---|---|
| P | 31.00 ft / 9.45 m | E | 12.00 ft / 3.66 m |
| S.A. fore | 202.95 ft² / 18.85 m² | S.A. main | 186.00 ft² / 17.28 m² |
| S.A. total (100% fore + main) | 388.95 ft² / 36.13 m² | S.A. / Displ. (from rig) | 14.87 |
| Est. forestay length | 38.50 ft / 11.73 m |
Calculated ratios
| S.A. / Displ. | 16.25 | Bal. / Displ. | 45.00 |
|---|---|---|---|
| Displ. / Length | 231.54 | Comfort ratio | 24.74 |
| Capsize screening | 1.86 | S# | 2.13 |
| Hull speed | 6.77 kn | Pounds / inch immersion | 865.59 |
Their notes: Keel/centreboard version: draft 7.00 ft / 2.13 m down, 3.00 ft / 0.91 m up. Tall mast (as drawn): I 40.00 ft, J 11.50 ft, P 35.50 ft, E 11.00 ft. A cutter rig with bowsprit was offered as an option in 1974.
Source: Grampian 30 — sailboatdata.com. Ratio definitions are on sailboatdata.
More about the Grampian 30
Grampian 30 Tall Rigs
I was asked how many G30 Tall Rigs were built. Gill Bibby provided this information:
There are no numbers as to how many tall rigs vs. standard ones were built. It was an extra that was placed as the vessels were ordered. The main difference was that the sail shape changed to go higher, as was the mast and boom. The mast was taller and the boom was shorter on the tall rigs. This moved the center of effort in the sail plan to a higher spot. Sails from a tall rig will not fit the short rig. I will have to read the sail plans to be more precise on the actual figures of sail area square footage and center of effort.
— Gill Bibby
High Praise for a Grampian 30
I had “Prospero” built over the 1973–1974 winter in Oakville. She is hull 226. “Prospero” has been successfully sailed single-handed to Bermuda twice, and to California by way of the Panama Canal — from Panama to Newport Beach we were at sea 44 days. This has been a wonderful boat, and has caused me virtually no trouble. The voyages were without problems, other than one knockdown in heavy weather off the coast of Venezuela. She righted herself immediately and we made Cartagena easily. The boat currently sits at The Old Lyme Marina in Connecticut. She looks better than new — she is better than new. I now sail New England. I have thought of going south. I could live on this boat for the rest of my life.
— George Miller
